High Speed Yamaha IPulse M10 M20 M3 Smt Pick And Place Machine

Product Details

Brand Name: Yamaha

Model Number: M10 , M20 , M3

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: 1.Wooden case and vacuum package 2.As your requirements

Delivery Time: 5-8 days

Payment Terms: T/T, Western Union, Paypal, Credit card

Supply Ability: 5000

Get Best Price
Highlight:
Name:
Yamaha IPulse M10 , M20 , M3
Brand:
Yamaha
Specification:
SMT PICK AND PLACE MACHINE
Maximum PCB Size:
740mm X W510mm
Applicable Components:
01005 (0402mm) ~120mm X 90mm (30mm Height) BGA,
Optimum Speed:
30,000CPH
Accuracy:
CHIP +/- 0.040mm IC +/- 0.025mm
Quality:
Top Qualiy
Warranty:
1 Year
Delivery:
Fedex,ups,dhl,as Required
Name:
Yamaha IPulse M10 , M20 , M3
Brand:
Yamaha
Specification:
SMT PICK AND PLACE MACHINE
Maximum PCB Size:
740mm X W510mm
Applicable Components:
01005 (0402mm) ~120mm X 90mm (30mm Height) BGA,
Optimum Speed:
30,000CPH
Accuracy:
CHIP +/- 0.040mm IC +/- 0.025mm
Quality:
Top Qualiy
Warranty:
1 Year
Delivery:
Fedex,ups,dhl,as Required
High Speed Yamaha IPulse M10 M20 M3 Smt Pick And Place Machine

Yamaha iPulse M10 , M20 , M3 high speed smt pick and place machine



The Yamaha M10 pick and place machine is a state-of-the-art equipment used in the electronics manufacturing industry for high-precision placement of electronic components onto printed circuit boards (PCBs). It offers advanced functionality, versatility, and efficiency to streamline the assembly process.

Functionality:
1. Component Placement: The Yamaha M10 pick and place machine is designed to accurately pick electronic components from the component feeders and place them onto the designated locations on the PCBs. It utilizes advanced vision systems, robotic arms, and placement heads to achieve precise and reliable component placement.
2. High-Speed Operation: The machine is capable of high-speed operation, ensuring rapid placement of components onto the PCBs. It features a high-speed head that can handle a large number of components per hour, resulting in improved production efficiency and reduced cycle times.
3. Component Compatibility: The Yamaha M10 pick and place machine supports a wide range of electronic components, including surface mount devices (SMDs), through-hole components, and odd-shaped components. It can handle various package types, such as resistors, capacitors, integrated circuits (ICs), connectors, and more.
4. Multi-Function Heads: The machine is equipped with multi-function heads that can handle different types of components. These heads have interchangeable nozzles to accommodate various component sizes and shapes. They can also perform additional functions, such as testing, dispensing, and inspection, further enhancing the machine's versatility.
5. Vision Systems: The machine features advanced vision systems that enable precise component alignment, verification, and correction. The vision systems can detect and correct for any variations in component orientation, ensuring accurate placement even for components with irregular shapes or variations in presentation.
6. Intelligent Feeders: The Yamaha M10 pick and place machine utilizes intelligent feeders that provide efficient component supply. These feeders can hold multiple component reels or trays and automatically feed the components to the pick and place heads. They are equipped with sensors to monitor component availability and prevent errors caused by empty feeders.

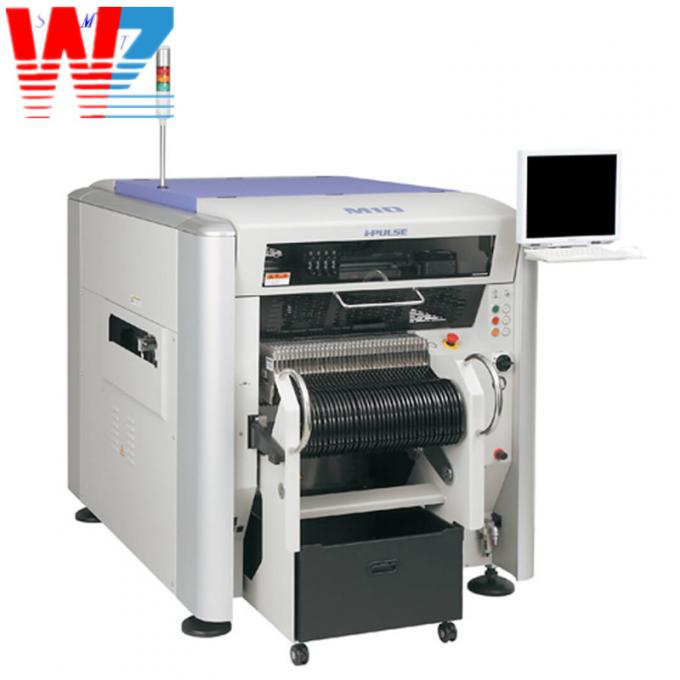

  Yamaha I-pulse M10
Board size(with buffer unused) Min. L50 x W30mm to Max. L980 x W510mm *1
Board size(with input or output buffer used) Min. L50 x W30mm to Max. L420 x W510mm
Board size(with input and output buffers used) Min. L50 x W30mm to Max. L330 x W510mm
Board thickness 0.4 - 4.8mm
Board flow direction Left to right (Standard)
Board transfer speed Max 900mm/sec
Placement speed (4 heads + 1 theta) Opt. Cond. 0.15sec/CHIP (24,000CPH)
Placement speed (4 heads + 4 theta) Opt. Cond. 0.15sec/CHIP (24,000CPH)
Placement speed (6 heads + 2 theta) Opt. Cond. 0.12sec/CHIP (30,000CPH)*2
Placement speed (4 heads + 1 theta) IPC9850 19,000CPH
Placement speed (4 heads + 4 theta) IPC9850 19,000CPH
Placement speed (6 heads + 2 theta) IPC9850 23,000CPH*2
Placement accuracy A (?+3?) CHIP +/-0.040mm
Placement accuracy B (?+3?) IC +/-0.025mm
Placement angle +/-180 degrees
Z axis control AC servo motor
Theta axis control AC servo motor
Component height Max 30mm*3 (Pre-placed components: max 25mm)
Applicable components 0402 to 120x90mm, BGA, CSP, connector, etc.
Component package 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray
Drawback check Vacuum check and vision check
Screen language English, Chinese, Korean, Japanese
Board positioning Board grip unit, front reference, auto conveyor width adjustment
Component types Max 72 types (8mm tape), 36 lanes x 2
Transfer height 900 +/- 20mm
Machine dimensions, weight L1250xD1750xH1420mm, Approx. 1,150kg
Power 3-phase 200/208/220/240/380/400/416/440V +/-10%
(Transformer included), 50/60Hz
Max consumption, capacity 1.1kW, 5.5kVA
Air pressure, consumption 0.45Mpa, 50(4 heads) or 75(6 heads) L/min A.N.R.



Usage Instructions:
1. Setup: Ensure that the Yamaha M10 pick and place machine is properly installed and connected to the power supply. Set up the component feeders and align them with the machine's feeder slots. Verify that the vision systems are properly calibrated.
2. Programming: Create or import the assembly program for the specific PCB layout and component placement. Use the machine's software interface to define component positions, pick-up points, and placement coordinates. Adjust programming parameters such as component height, vision system settings, and placement accuracy as needed.
3. Feeder Loading: Load the component reels or trays onto the intelligent feeders. Ensure that the components are properly loaded and aligned within the feeders. Configure the machine's control system to recognize and manage the loaded feeders.
4. PCB Loading: Prepare the PCBs for placement by ensuring they are clean, properly aligned, and secured on the machine's worktable or conveyor. Ensure that fiducial marks on the PCB are visible for the vision system's alignment.
5. Machine Calibration: Perform necessary calibration procedures to ensure precise component placement. This may include calibrating the vision system, verifying the accuracy of the pick and place heads, and adjusting any mechanical or alignment settings.
6. Start Operation: Start the Yamaha M10 pick and place machine and initiate the assembly program. 6. Monitor the machine's operation to ensure that components are picked accurately from the feeders and placed precisely onto the PCBs. Monitor the vision system's alignment and correction processes to ensure proper component orientation.
7. Maintenance: Regularly inspect the machine for signs of wear, damage, or malfunction. Keep the machine clean and free from debris that may affect its performance. Follow the manufacturer's maintenance guidelines for any required lubrication, cleaning, or component replacement.

The Yamaha M10 pick and place machine provides advanced functionality for high-precision component placement onto PCBs. By following the proper usage instructions, it enables efficient and accurate assembly, contributing to improved productivity and quality in the electronics manufacturing process.
