Product Name: |
SMT PCB Loader Machine |
Model Number: |
PCB Loader |
Quality: |
Top |
Package: |
Wooden Case |
PCB Delivery Height: |
900 +/- 20mm |
Type: |
SMT Machine |
Brand: |
ODM |
Air Pressure: |
4-6 Bar |
Delivery: |
Ups,dhl,fedex,as Your Order |
Port: |
Shenzhen |
Product Name: |
SMT PCB Loader Machine |
Model Number: |
PCB Loader |
Quality: |
Top |
Package: |
Wooden Case |
PCB Delivery Height: |
900 +/- 20mm |
Type: |
SMT Machine |
Brand: |
ODM |
Air Pressure: |
4-6 Bar |
Delivery: |
Ups,dhl,fedex,as Your Order |
Port: |
Shenzhen |
Cheap used and second hand SMT automatic PCB loader unloader machine
| Name | Cheap used and second hand SMT PCB loader machine |
| Brand | ODM |
| Model | Cheap used and second hand SMT PCB loader machine |
| Specification | Cheap used and second hand SMT PCB loader machine |
| Condition | original/copy |
| Quality | top qualiy |
| Stock | large |
| Payment | L/C T/T D/P Western Union Paypal Money Gram And Others |
| Shipment | In three days |
| Warranty | 1 year |
| Delivery | fedex,ups,dhl,as required |
| Package | carton box with foam protect |

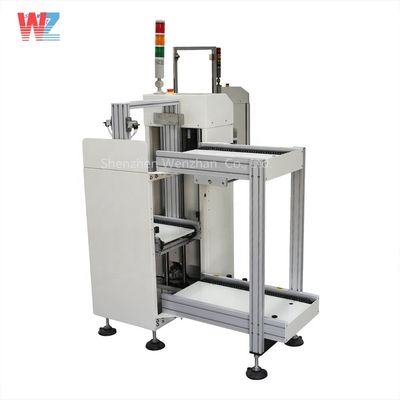

SMT Equipment Magazine PCB Loader Unloader used in Production Line
Connect with SMT and AI productions line, safety design ensure not to break any PCB when it is pushed and thus
reduce defect rate. Agility operation. With high accuracy, automatic counting, fault alram functions, it is required for a
full range of automation equipment.
The PCB Loader is designed for loading of PCBs. The unit loads your production line automatically by pushing
PCB’s out of a magazine onto the conveyor of the down-stream machine.
The PCB Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and
then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is
ready for the following unloading cycle.
| Description | HY-250LD | HY-330LD | HY-390LD | HY-460LD |
| PCB delivery height | 900 +/- 20mm | |||
| Direction | L-R/ R-L | |||
| PCB size(L*W)(MM) | 50*50~350*250 | 50*50~455*330 | 50*50~530*390 | 50*50~530*460 |
| Time Feed PCB | Approx 6 seconds or Specify | |||
| Magazine Change Over time | Approx 20 seconds or Specify | |||
| Indexing pitch | 1-4(10mm pitch) or Specify | |||
| Power Source & Consumption | 100. 230VAC 1Ph 300VA max | |||
| Air Pressure | 4-6 bar | |||
| Air Consumption | 10 ltr/min max | |||
| PCB Thickness | 0.4mm min | |||
| Magazine Rack Size(L*W*H)(MM) | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Machine Dimension | 1100*780*1200 | 1400*860*1200 | 1500*920*1200 | 1600*1120*1200 |
| weight | 140kg | 180kg | 220kg | 250kg |
