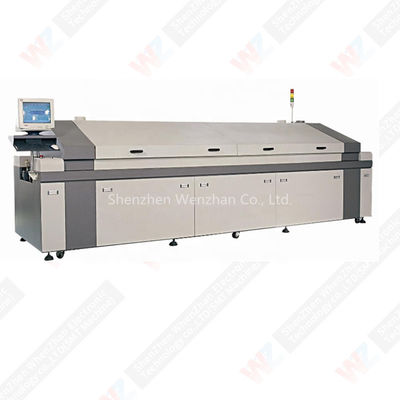

SMT pick and place machine 8/10/12 zone Reflow Oven

MOQ: 1pcs
Price: Negotiable
Standard Packaging: 1.wooden case 2.As your order
Delivery Period: 5-8 days
Supply Capacity: 10 Piece/Pieces per Week
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
ODM
Certification
CE
Product Name:
Cheap Used And Second Hand SMT Reflow Oven
Model Number:
8/10/12 Zones
Voltage:
220V
Dimensions:
3600x720x1250mm
Rated Duty Cycle:
100%
Rated Capacity:
4800W
Current:
50/60Mhz
Delivery:
Ups,dhl,fedex,as Your Order
Weight:
39kg
Package:
Wooden Case
Highlight:

720mm width smt reflow oven

,

ISO smt reflow oven

,

720mm width reflow soldering oven

Product Description

Cheap used and second hand SMT reflow oven

The reflow oven is a specialized equipment used in the electronics manufacturing industry for the soldering and thermal treatment of printed circuit boards (PCBs). It offers a range of functionality and features that ensure proper soldering, temperature control, and efficient processing of PCB assemblies.


Functionality:

1. Soldering: The reflow oven is designed to melt solder paste and create reliable solder joints between electronic components and PCBs. It utilizes controlled heating zones and conveyor systems to heat the PCB assembly to the desired temperature, allowing the solder to flow and form secure electrical connections.
2. Temperature Control: The oven provides precise temperature control throughout the soldering process. It typically consists of multiple heating zones, each with adjustable temperature profiles. This allows for optimized temperature ramp-up, soaking, and cooling stages, ensuring proper thermal profiles for different solder types and components.
3. Conveyor System: The oven is equipped with a conveyor system that transports PCB assemblies through the heating zones. The conveyor ensures consistent and uniform heating, promoting even soldering and minimizing thermal stress on the components. It can be configured to accommodate various PCB sizes and shapes.
4. Nitrogen Atmosphere: Some reflow ovens offer the option of a nitrogen atmosphere. Nitrogen is used to displace oxygen during the soldering process, reducing the risk of oxidation and improving solder joint quality. This feature is particularly beneficial for lead-free soldering and high-reliability applications.
5. Cooling Zone: The reflow oven includes a cooling zone to rapidly cool down the PCB assembly after soldering. This controlled cooling stage helps solidify the solder joints and prevents component damage due to thermal shock. It also prepares the PCB for subsequent handling and inspection processes.
6. Thermal Profiling: The oven often supports thermal profiling capabilities. This involves monitoring and recording the temperature profile of the PCB assembly during the soldering process. Thermal profiling allows for process optimization, troubleshooting, and quality control, ensuring consistent and reliable soldering results.

Usage Range:
The reflow oven is used in various applications within the electronics manufacturing industry, including:

1. Surface Mount Technology (SMT) Assembly: It serves as a vital component in SMT assembly processes. The oven is used to solder components with surface mount technology, including surface mount devices (SMDs) such as resistors, capacitors, integrated circuits (ICs), and other electronic components onto PCBs.
2. PCB Assembly Lines: The reflow oven is an essential part of automated PCB assembly lines. It provides the necessary heat treatment to solder the components onto the PCBs, ensuring efficient and reliable assembly processes.
3. Lead-Free Soldering: With the shift towards lead-free soldering, reflow ovens are commonly used to achieve the required temperatures for lead-free solder alloys. The precise temperature control and nitrogen atmosphere help ensure proper soldering and compliance with environmental regulations.
4. Batch Processing: The oven can be used for batch processing of PCB assemblies, allowing for efficient soldering of multiple boards simultaneously. This is particularly useful for small to medium-scale production runs or prototyping.
5. Rework and Repair: The reflow oven is also utilized for rework and repair operations. It can be used to remove and replace components on previously soldered PCBs, ensuring proper solder reflow and rework integrity.

The reflow oven plays a crucial role in the soldering process of PCB assemblies. It offers precise temperature control, consistent heating, and efficient cooling, ensuring reliable solder joints and high-quality electronic assemblies.



Name Cheap used and second hand SMT reflow oven
Model Cheap used and second hand SMT reflow oven
Specification reflow oven
Condition original/copy
Quality top qualiy
Stock large
Payment L/C T/T D/P Western Union Paypal Money Gram And Others
Shipment In three days
Warranty 1 year
Delivery fedex,ups,dhl,as required
Package carton box with foam protect
SMT pick and place machine 8/10/12 zone Reflow Oven 0
SMT pick and place machine 8/10/12 zone Reflow Oven 1
SMT pick and place machine 8/10/12 zone Reflow Oven 2
SMT pick and place machine 8/10/12 zone Reflow Oven 3
SMT pick and place machine 8/10/12 zone Reflow Oven 4
SMT pick and place machine 8/10/12 zone Reflow Oven 5

We have full range of SMT pick and place machine For FUJI,JUKI,SAMSUNG,YAMAHA, and so on,feeder,nozzle,smt pick and place machine,PCB Conveyor,
cylinder,and vibration feeder,anything you need ,just tell me!
The main brand is Fuji YAMAHA Samsung SONY heavy machine
1. SMT lubricating oil
2. SMT parts
3. Nozzle and feeder
4. SMT belt and other parts in the machine

SMT pick and place machine 8/10/12 zone Reflow Oven 6
