| MOQ: | 1pcs |
| Price: | Negotiable |
| Standard Packaging: | 1.wooden case 2.As your order |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T, Western Union, Paypal, Credit card |
| Supply Capacity: | 100 Sets per week |

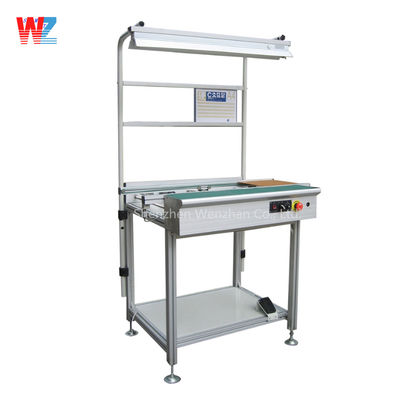

Customized PCB Stainless Steel Inspection Conveyor For SMT Assembly Line
The PCB conveyor is a specialized equipment used in the electronics manufacturing industry for the transportation and handling of printed circuit boards (PCBs) during the assembly process. It offers a range of functionality and features that enhance efficiency, productivity, and safety in the production line.
Features:
1. Modular design, optional assembly as per client’s requirement.
2. Rugged steel design, improves equipment stability .
3. Smooth stainless steel screw to adjust the width of the rail.
4. Variable speed control.
5. Circuit board testing mode.
6. Using a dedicated aluminum slot for transfer orbit to prevent PCB stuck.
7. Heavier bottom design, not easily shift.
8. Machine length can be customized.
9. Compatible with SMEMA interface.
Specification
| Product Name | PCB Inspection Conveyor | |||
| Rail Length(mm) | 500 mm | 1000 mm | 1200 mm | 2000 mm |
| Dimension (mm) | 500*700*950 | 1000*700*950 | 1200*700*950 | 2000*700*950 |
| PCB Width | 50 to 350 mm | |||
| PCB Direction | L to R or R to L | |||
| Speed | Adjustable | |||
| Control System | PLC | |||
| Track Fixed Edge | Front Fixed or Back Fixed | |||
| Communication | SMEMA for both in & out | |||
| Power Supply |
1 PH AC 220V 50/60Hz
(Option:110V to 380V)
|
|||
| Weight | 70 Kg | 95 Kg | 105 Kg | 150 Kg |
We have full range of SMT pick and place machine For FUJI,JUKI,SAMSUNG,YAMAHA, and so on,
feeder,nozzle,smt pick and place machine,PCB Conveyor,
cylinder,and vibration feeder,anything you need ,just tell me!
The main brand is Fuji YAMAHA Samsung SONY heavy machine
1. SMT lubricating oil
2. SMT parts
3. Nozzle and feeder
4. SMT belt and other parts in the machine
FAQ
1) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
2) MOQ ?
1 set machine, mixed order is also welcomed.
3) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
Video
Video
Video
Video
Video
Video
Video
Video
|
|
